Plug 50 Pin Centronic Champ Solder Pin Connector with 90 Degree Reversed Plastic Cover

Name: Plug 50 Pin Centronic Champ Solder Pin Connector with 90 Degree Reversed Plastic Cover
Brand: FUYCONN
Price: 0.5 USD

Wholesale Plug 50 Pin Centronic Champ Solder Pin Connector with 90 Degree Reversed Plastic Cover from china suppliers

Place of Origin : China

Brand Name : FUYCONN

Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004

Model Number : FUY57104

MOQ : 10pcs

Price : USD0.5 - USD5

Packaging Details : Vacuum Tray + Carton

Delivery Time : 7-10 days

Payment Terms : T/T or Paypal

Supply Ability : 1 million/ month

product name : centronic solder connector

product line : champ connector

no. of pin : 50pin 25pairs connector

gender : male connector

gold plating : 1U", 3U", 5U", 10U", 15U",30U"

contact material : brass

insulation material : PBT

housing : 90 degree plastic cover

Contact Now

Plug 50 Pin Centronic Champ Solder Pin Connector with 90 Degree Reversed Plastic Cover

This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.

The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The Centronics 50-pin connector is arranged in two rows of pins each with 25 contacts. The Centronics 50 connector is most often used by older SCSI-1 devices (scanners, storage devices, etc.). A slight variant of the Centronics 50 connector is used in voice/data applications. This variant is commonly called a Telco connector.

Detail Description:

Product Category: Centronic connector
Connector Style:Plug
Type: Centronic Solder Connector
Product Line: Champ Connector
Number of Terminal: 50 pin
Gender: Male
Centerline = 2.16mm [0.085in]
Conver Style: 90 degree Reversed Plastic Cover
Insulator Color: Black or Blue
Insulator Type: Hard connection
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: 90°Cable Exit Angle

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Applications
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type:	Centronics Solder Connector
Product Line:	Champ Connector
Gender:	Male
Connector Style:	Plug
Certerline :	2.16mm(0.85in)
Number of Position:	50 pin
Contact Plating:	Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color:	Black or Blue
Shielded:	Yes
Orientation:	90 Degree Cable Exit
Mating connector lock:	Screwlocks

Materials

Contact Material:	Brass
Insulator:	PBT (UL 94-V0)
Housing	PBT

Electrical Character

Current Rating:	5Amp
Withstanding Voltage:	AC 1000v r.m.s
Insulation Resistance:	1000 Megohms Minimum at DC 500V
Contact Resistance:	25M∩ Max Mated
Operation Temperature:	-55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Test Equipment
9,Telemetering
10, Dot Matrix Printer

Product Tags:

solder connectors

solder wire connectors

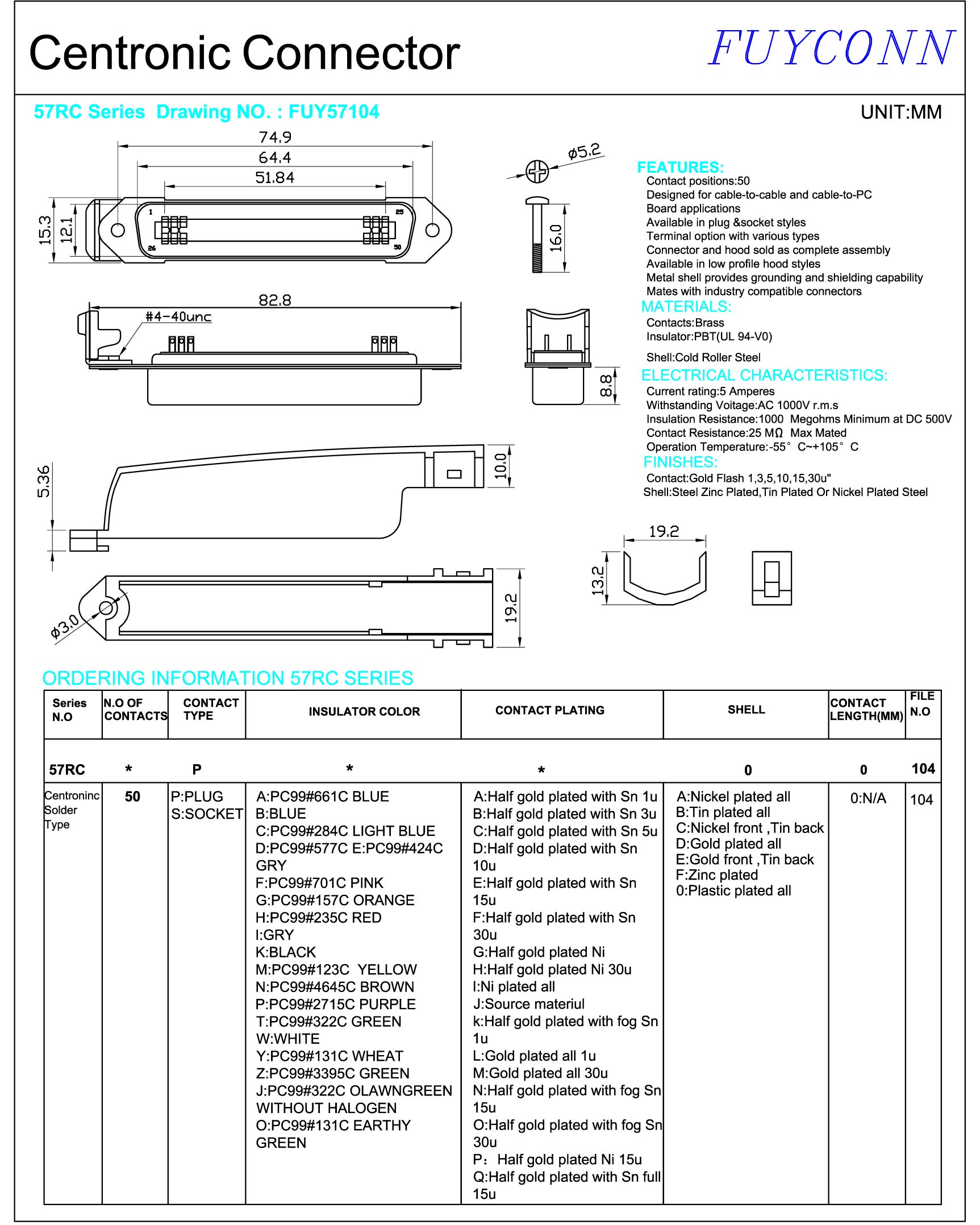

Plug 50 Pin Centronic Champ Solder Pin Connector with 90 Degree Reversed Plastic Cover Images
